(1). 概述
在前面,运行起来了Broker,在这里,需要有一个简单的Demo来运行,demo来自于zeebe的github.

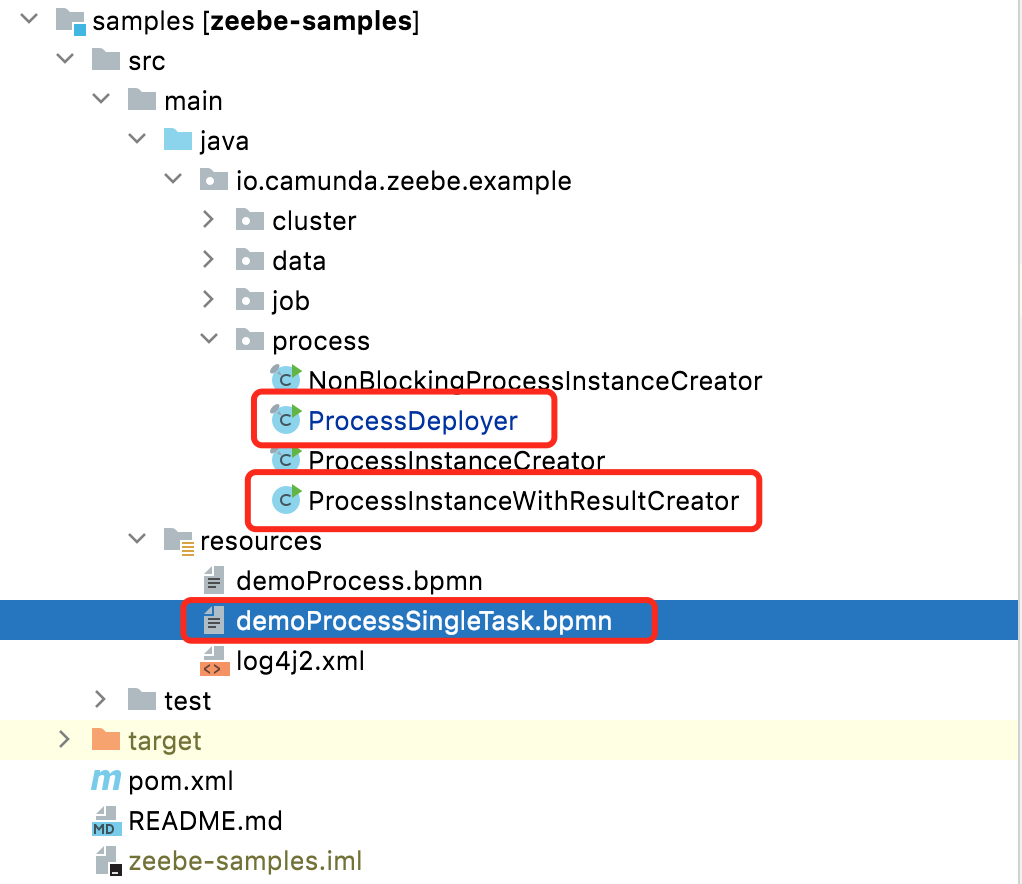

(2). Zeebe Sample
(3). 流程定义(demoProcessSingleTask.bpmn)
<?xml version="1.0" encoding="UTF-8"?>
<bpmn:definitions xmlns:bpmn="http://www.omg.org/spec/BPMN/20100524/MODEL" xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI" xmlns:di="http://www.omg.org/spec/DD/20100524/DI" xmlns:dc="http://www.omg.org/spec/DD/20100524/DC" xmlns:zeebe="http://camunda.org/schema/zeebe/1.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:camunda="http://camunda.org/schema/1.0/bpmn" id="Definitions_1" targetNamespace="http://bpmn.io/schema/bpmn" exporter="Zeebe Modeler" exporterVersion="0.8.0">
<bpmn:process id="demoProcessSingleTask" isExecutable="true">
<bpmn:startEvent id="start" name="start">
<bpmn:outgoing>SequenceFlow_1sz6737</bpmn:outgoing>
</bpmn:startEvent>
<bpmn:sequenceFlow id="SequenceFlow_1sz6737" sourceRef="start" targetRef="taskA" />
<bpmn:sequenceFlow id="SequenceFlow_06ytcxw" sourceRef="taskA" targetRef="end" />
<bpmn:endEvent id="end" name="end">
<bpmn:incoming>SequenceFlow_06ytcxw</bpmn:incoming>
</bpmn:endEvent>
<bpmn:serviceTask id="taskA" name="task A">
<bpmn:extensionElements>
<zeebe:taskDefinition type="foo" />
</bpmn:extensionElements>
<bpmn:incoming>SequenceFlow_1sz6737</bpmn:incoming>
<bpmn:outgoing>SequenceFlow_06ytcxw</bpmn:outgoing>
</bpmn:serviceTask>
</bpmn:process>
<bpmndi:BPMNDiagram id="BPMNDiagram_1">
<bpmndi:BPMNPlane id="BPMNPlane_1" bpmnElement="demoProcess">
<bpmndi:BPMNShape id="_BPMNShape_StartEvent_2" bpmnElement="start">
<dc:Bounds x="173" y="102" width="36" height="36" />
<bpmndi:BPMNLabel>
<dc:Bounds x="180" y="138" width="22" height="12" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNShape>
<bpmndi:BPMNEdge id="SequenceFlow_1sz6737_di" bpmnElement="SequenceFlow_1sz6737">
<di:waypoint x="209" y="120" />
<di:waypoint x="310" y="120" />
<bpmndi:BPMNLabel>
<dc:Bounds x="260" y="105" width="0" height="0" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNEdge>
<bpmndi:BPMNEdge id="SequenceFlow_06ytcxw_di" bpmnElement="SequenceFlow_06ytcxw">
<di:waypoint x="410" y="120" />
<di:waypoint x="542" y="120" />
<bpmndi:BPMNLabel>
<dc:Bounds x="456" y="105" width="0" height="0" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNEdge>
<bpmndi:BPMNShape id="EndEvent_0gbv3sc_di" bpmnElement="end">
<dc:Bounds x="542" y="102" width="36" height="36" />
<bpmndi:BPMNLabel>
<dc:Bounds x="551" y="138" width="19" height="14" />
</bpmndi:BPMNLabel>
</bpmndi:BPMNShape>
<bpmndi:BPMNShape id="ServiceTask_09m0goq_di" bpmnElement="taskA">
<dc:Bounds x="310" y="80" width="100" height="80" />
</bpmndi:BPMNShape>
</bpmndi:BPMNPlane>
</bpmndi:BPMNDiagram>
</bpmn:definitions>
(4). 流程部署(ProcessDeployer)
package io.camunda.zeebe.example.process;
import io.camunda.zeebe.client.ZeebeClient;
import io.camunda.zeebe.client.ZeebeClientBuilder;
import io.camunda.zeebe.client.api.response.DeploymentEvent;
public final class ProcessDeployer {
public static void main(final String[] args) {
final String defaultAddress = "localhost:26500";
final String envVarAddress = System.getenv("ZEEBE_ADDRESS");
final ZeebeClientBuilder clientBuilder;
if (envVarAddress != null) {
/* Connect to Camunda Cloud Cluster, assumes that credentials are set in environment variables.
* See JavaDoc on class level for details
*/
clientBuilder = ZeebeClient.newClientBuilder().gatewayAddress(envVarAddress);
} else {
// connect to local deployment; assumes that authentication is disabled
clientBuilder = ZeebeClient.newClientBuilder().gatewayAddress(defaultAddress).usePlaintext();
}
try (final ZeebeClient client = clientBuilder.build()) {
// *****************************************************************************
// 部署流程实例
// *****************************************************************************
final DeploymentEvent deploymentEvent = client.newDeployCommand().addResourceFromClasspath("demoProcessSingleTask.bpmn").send().join();
System.out.println("Deployment created with key: " + deploymentEvent.getKey());
}
}
}
(5). 流程运行(ProcessInstanceWithResultCreator)
package io.camunda.zeebe.example.process;
import io.camunda.zeebe.client.ZeebeClient;
import io.camunda.zeebe.client.ZeebeClientBuilder;
import io.camunda.zeebe.client.api.response.ProcessInstanceResult;
import java.time.Duration;
import java.util.Map;
public class ProcessInstanceWithResultCreator {
public static void main(final String[] args) {
final String defaultAddress = "localhost:26500";
final String envVarAddress = System.getenv("ZEEBE_ADDRESS");
final ZeebeClientBuilder clientBuilder;
if (envVarAddress != null) {
clientBuilder = ZeebeClient.newClientBuilder().gatewayAddress(envVarAddress);
} else {
clientBuilder = ZeebeClient.newClientBuilder().gatewayAddress(defaultAddress).usePlaintext();
}
final String bpmnProcessId = "demoProcessSingleTask";
try (final ZeebeClient client = clientBuilder.build()) {
// open job workers so that task are executed and process is completed
openJobWorker(client);
System.out.println("Creating process instance");
final ProcessInstanceResult processInstanceResult =
client
.newCreateInstanceCommand()
.bpmnProcessId(bpmnProcessId)
.latestVersion()
.withResult() // to await the completion of process execution and return result
.send()
.join();
System.out.println(
"Process instance created with key: "
+ processInstanceResult.getProcessInstanceKey()
+ " and completed with results: "
+ processInstanceResult.getVariables());
}
}
private static void openJobWorker(final ZeebeClient client) {
client
.newWorker()
.jobType("foo")
.handler(
(jobClient, job) ->
jobClient
.newCompleteCommand(job.getKey())
.variables(Map.of("job", job.getKey()))
.send())
.timeout(Duration.ofSeconds(10))
.open();
}
}

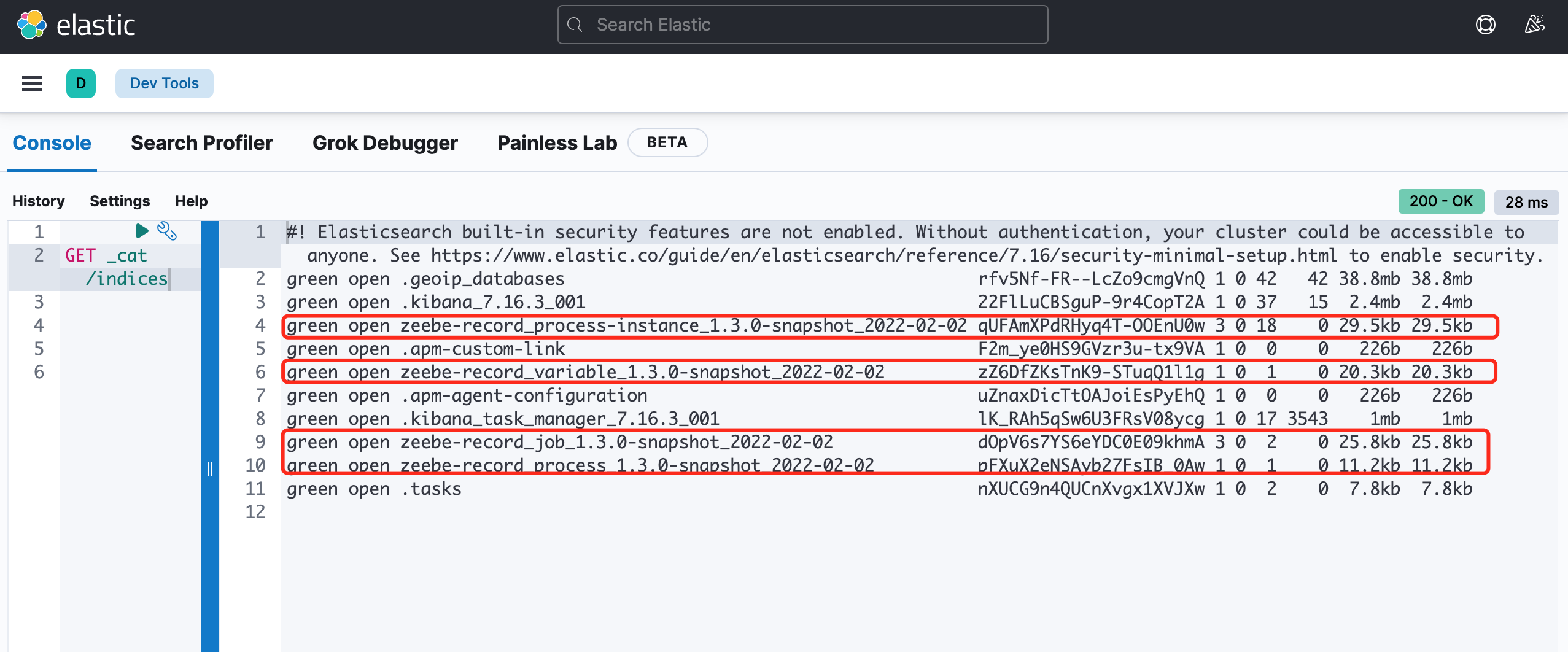

(6). Kibana查看索引信息
