(1).ChannelPipeline

说ChannelPipeline时,不得不说下以下几个接口:
    io.netty.channel.ChannelPipeline
    io.netty.channel.ChannelHandlerContext
    io.netty.channel.ChannelHandler
    io.netty.channel.Channel

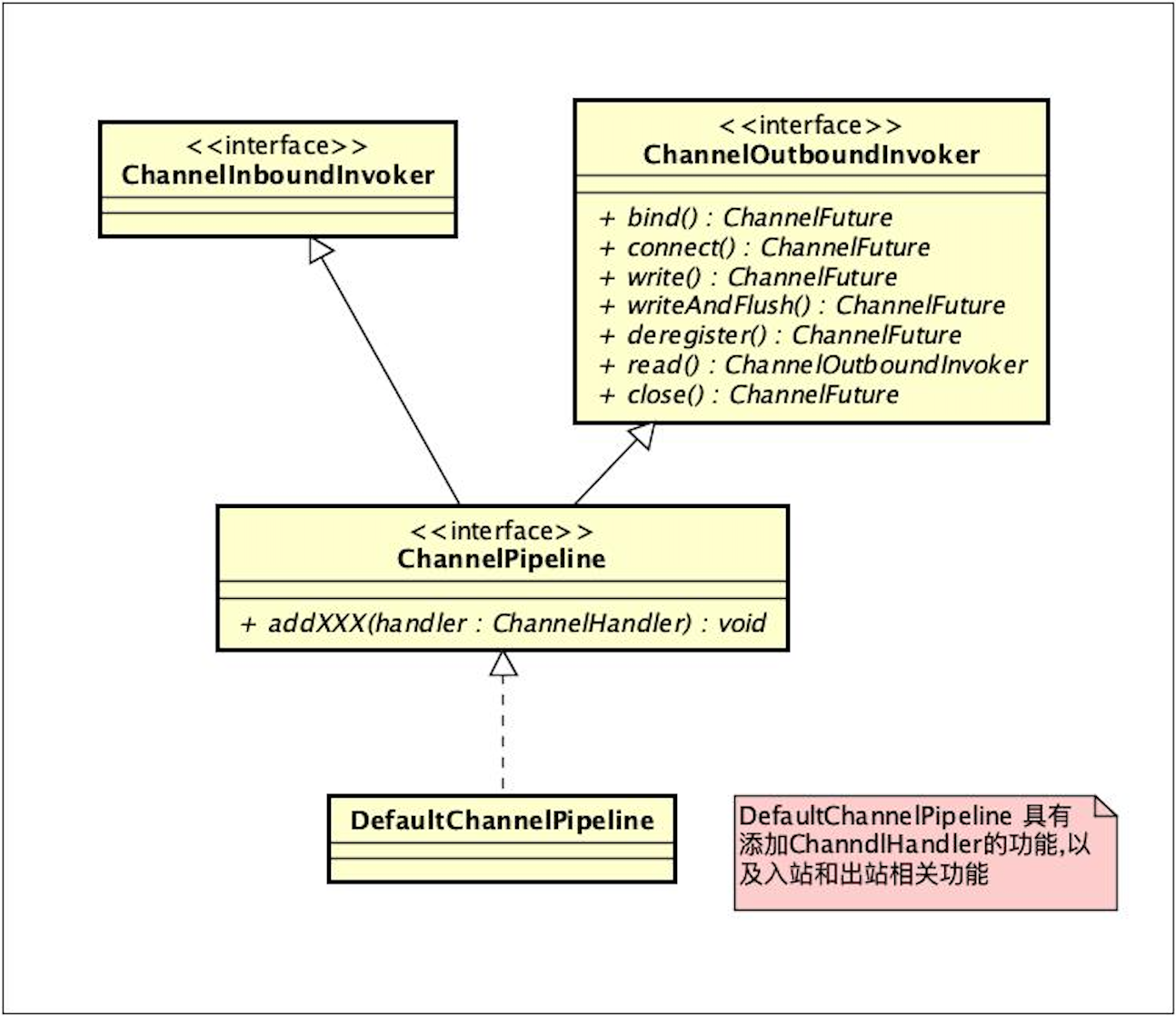

(2).ChannelPipeline 接口声明

"ChannelPipeline接口声明"

(3).ChannelHandlerContext接口详解

"ChannelHandlerContext接口详解"

(4).ChannelHandler接口详解

"ChannelHandler接口详解"

(5).ChannelPipeline.addLast(xxx) 流程图解

"ChannelPipeline.addLast(xxx) 流程图解"

(6).ChannelPipeline.addLast(xxx)

public class DefaultChannelPipeline implements ChannelPipeline {
    private boolean registered;

    // 添加ChanndlHandler
    public final ChannelPipeline addLast(ChannelHandler... handlers) {
        return addLast(null, handlers);
    } // end addLast

    public final ChannelPipeline addLast(EventExecutorGroup executor, ChannelHandler... handlers) {
        ObjectUtil.checkNotNull(handlers, "handlers");

        for (ChannelHandler h: handlers) {
            if (h == null) {
                break;
            }
            // addLast
            addLast(executor, null, h);
        }
        return this;
    } // end addLast

    public final ChannelPipeline addLast(EventExecutorGroup group, String name, ChannelHandler handler) {
        final AbstractChannelHandlerContext newCtx;
        synchronized (this) {
            // 验证
            checkMultiplicity(handler);

            // 创建:DefaultChannelHandlerContext(包裹着channel/handler)
            newCtx = newContext(group, filterName(name, handler), handler);

            // 向链表的尾部加入上下文
            addLast0(newCtx);

            // !(false)
            if (!registered) {
                // 为新创建的上下文设置状态为:ADD_PEDING
                newCtx.setAddPending();
                //
                callHandlerCallbackLater(newCtx, true);
                // 直接return了
                return this;
            }

            EventExecutor executor = newCtx.executor();
            if (!executor.inEventLoop()) {
                callHandlerAddedInEventLoop(newCtx, executor);
                return this;
            }
        }
        callHandlerAdded0(newCtx);
        return this;
    } // end addLast


    private void callHandlerCallbackLater(AbstractChannelHandlerContext ctx, boolean added) {
        assert !registered;
        // added = true
        // 创建:PendingHandlerAddedTask
        PendingHandlerCallback task = added ? new PendingHandlerAddedTask(ctx) : new PendingHandlerRemovedTask(ctx);
        PendingHandlerCallback pending = pendingHandlerCallbackHead;
        if (pending == null) {
            // 设置当前对象的属性:pendingHandlerCallbackHead为:PendingHandlerAddedTask
            pendingHandlerCallbackHead = task;
        } else {
            while (pending.next != null) {
                pending = pending.next;
            }
            pending.next = task;
        }
    }// end callHandlerCallbackLater

}

(7).总结

ChannelPipeline.addLast()方法在执行时.

  1. 创建DefaultChannelHandlerContext包裹着:ChannelHandler
  2. 把DefaultChannelHandlerContext添加到链表的末端.
  3. 设置DefaultChannelHandlerContext状态为:ADD_PEDING
  4. 创建:PendingHandlerAddedTask任务.
